Guangdong Hanluo Environmental Protection Technology Co., LTD. - Pure Water System Product Series
Guangdong Hanluo Environmental Protection Technology Co., Ltd. is committed to providing high-standard pure water solutions ranging from industrial to laboratory and pharmaceutical grades. Our pure water system is based on advanced core technologies such as reverse osmosis (RO) and electro-deionization (EDI), combined with a modular design concept, to ensure stable, reliable and efficient output water quality, meeting the strict requirements of different industries for pure water.
Core product series

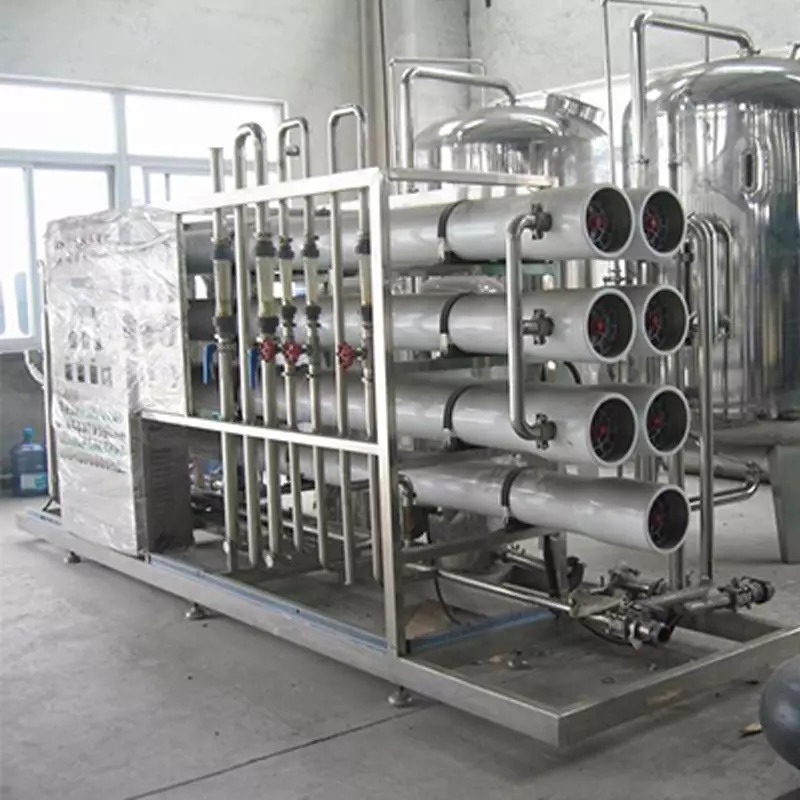

Reverse osmosis (RO) pure water system
System Overview: Utilizing internationally renowned brand membrane elements, the raw water is made to pass through the RO membrane by a high-pressure pump, effectively removing over 99% of dissolved salts, colloids, microorganisms, and organic matter from the water. This is the core process section for preparing pure water.
Technical features
The core membrane elements can be selected from well-known imported or domestic brands (such as Dow, Hydranautics, Huitong, etc.), featuring high desalination rate and strong anti-pollution performance.
Fully automatic control, equipped with low-pressure protection, water shortage protection, automatic flushing, online water quality monitoring and other functions.
The modular design allows for flexible configuration of pretreatment units (such as multi-media filtration, activated carbon filtration, softening, etc.) based on the quality of the raw water and the requirements of the produced water.
Energy-saving design, with optional energy recovery devices or high-efficiency booster pumps to reduce operating costs.
Typical applications: boiler feed water, electroplating and coating, cleaning in the electronics industry, chemical batching, water for food and beverages, etc.
2. EDI ultra-pure water equipment
System Overview: By filling ion exchange resin between electrodialysis membranes, deep ion removal and continuous electrical regeneration of the resin are achieved under the action of a direct current electric field. There is no need for acid-base chemical regeneration, and ultra-pure water with a resistivity as high as 15-18.25 MΩ·cm can be stably produced.
Technical features
Continuous operation ensures stable water quality, with no chemical pollution or waste acid and alkali emissions, making it environmentally friendly and green.
Fully automatic operation, simple maintenance, significantly reducing labor and consumable costs.
It is usually integrated with the RO system and serves as a fine treatment unit for deep desalination.
Typical applications: microelectronics, semiconductors, photovoltaics, liquid crystal panels, high-end laboratories, biopharmaceuticals, ultra-high pressure boilers in power plants, etc.
3. Medical purified water equipment
System Overview: It is strictly designed and manufactured in accordance with the water quality requirements for purified water stipulated in the Pharmacopoeia of the People's Republic of China. The materials, structure and disinfection methods of the system all comply with GMP and relevant hygiene standards.
Technical features
It is made of 316L sanitary grade stainless steel, and the pipelines are connected with sanitary grade clamps, featuring a design without dead corners.
Equipped with a complete disinfection and sterilization unit (such as pasteurization, ozone or ultraviolet), it ensures that the microorganisms in the system are controllable.
It is equipped with complete online water quality monitoring (conductivity, TOC, etc.) and data recording/traceability functions.
Typical applications: Purified water production in pharmaceutical factories, central supply rooms in hospitals, preparation rooms, biological product manufacturing, cleaning of medical devices, etc.
4. Integrated pure water/ultrapure water integrated system
System Overview: The pre-treatment, RO, EDI/ polishing mixed bed, ultraviolet sterilization, terminal filtration and other modules are highly integrated into a compact rack or container, which is plug-and-play.
Technical features
It occupies a small area, is easy to install and reduces on-site engineering volume.
Intelligent central control, friendly human-machine interface and simple operation.
The water production capacity (from 0.5T/H to hundreds of T/H) and water quality grade can be customized according to customer requirements.
Typical applications: small and medium-sized laboratories, field workstations, distributed production sites, emergency water demands, etc.
Our core strength
Professional customization: Based on the customer's raw water report (water quality and quantity) and usage requirements, we provide personalized process design and equipment selection.
Quality Assurance: Key components (membranes, pumps, instruments, controllers) adopt mainstream brands in the industry to ensure the long-term stable operation of the system.
Intelligent control: Equipped with a standard PLC automatic control system, it enables one-click start and stop, fault alarm, and remote monitoring (optional), ensuring worry-free operation and management.
Comprehensive services: We offer one-stop services ranging from on-site investigation, scheme design, installation and commissioning, personnel training to after-sales maintenance, and establish lifelong customer files.
Environmental protection and energy conservation: Optimize system recovery rate and reduce wastewater discharge; Adopting high-efficiency and energy-saving components, we help customers save long-term operating costs.
Technical parameters (adjustable according to specific model)
Water production capacity: 0.5-100 m³/H (expandable
Effluent quality
RO pure water: Conductivity ≤ 10 μs/cm
EDI Ultrapure water: Resistivity ≥ 15 MΩ·cm (25°C)
Medical purified water: Complies with the standards of the latest edition of the Chinese Pharmacopoeia
Control mode: Fully automatic PLC control, touch screen operation
System material: The parts in contact with liquids are made of 304/316L stainless steel, UPVC or sanitary-grade materials
