Guangdong Hanluo Environmental Protection Technology: Underground Domestic Sewage Treatment Equipment
I. Product Overview

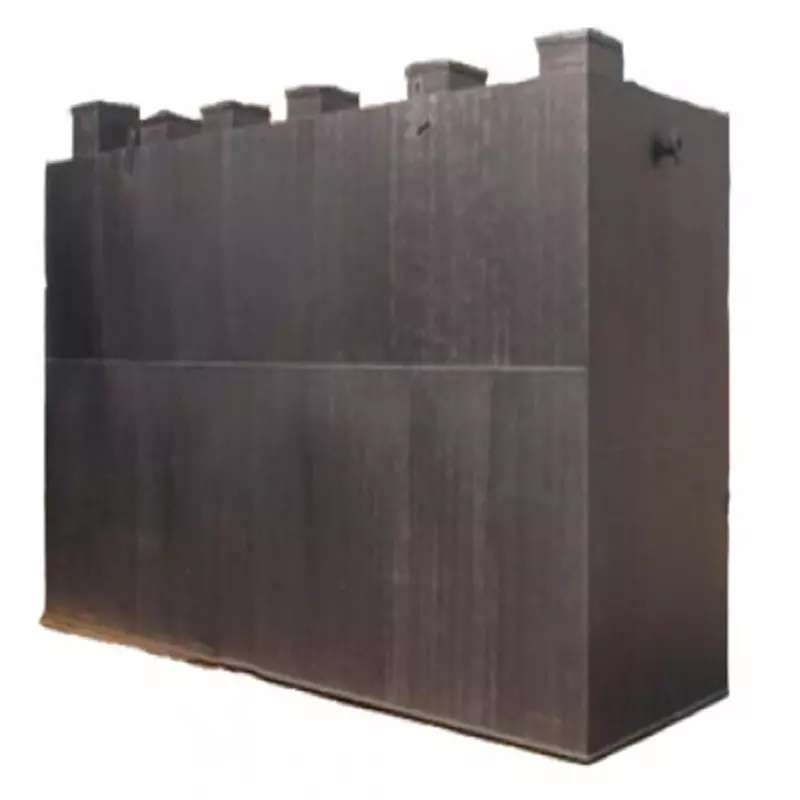

The underground integrated domestic sewage treatment equipment independently developed and produced by our company is a modular and integrated high-efficiency solution specially designed for treating decentralized domestic sewage (such as residential areas, villages, schools, hotels, resorts, factory living areas, etc.). This equipment adopts mature and reliable biological treatment processes (such as A/O, A²/O, MBR, etc.), combined with advanced intelligent control technology, and integrates the sewage treatment unit into a steel structure tank or box that can be buried underground. Its core advantages lie in its small footprint, high treatment efficiency, stable operation, fully automatic operation, simple maintenance and minimal impact on the ground environment. It is an ideal choice for on-site treatment and standard discharge of domestic sewage.
Ii. Core Design Features
Underground structure, environmentally friendly
The main equipment is buried underground, and the surface can be restored as green space, parking lot or square, which saves precious land resources and does not affect the landscape and ground activities.
It has good heat preservation performance, and the internal temperature of the equipment is stable, which is conducive to the growth of microorganisms and ensures the treatment effect in the low-temperature environment of winter.
The equipment operates with low noise and no odor leakage, achieving harmonious coexistence with the surrounding environment.
Advanced technology, stable compliance
According to the quality of the raw water and the discharge standards (usually Grade B or Grade A of the "Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants" GB18918-2002), mainstream processes such as A/O (anaerobic-aerobic), A²/O (anaerobic-anoxic-aerobic), SBR, and MBR (Membrane bioreactor) should be flexibly selected.
It can efficiently remove major pollutants such as COD, BOD₅, NH₃-N, SS, total nitrogen and total phosphorus. The effluent is clear and can stably meet the designed discharge requirements.
Highly integrated, intelligent operation
The units such as the regulating tank, biological treatment tank, sedimentation tank, disinfection tank, sludge tank and equipment room are modularly integrated into one, featuring a compact structure.
Equipped with a fully automatic electrical control system and cloud platform remote monitoring (optional), it realizes automatic start and stop of equipment, fault alarm, remote monitoring and adjustment of operating parameters, without the need for dedicated personnel to stand by, greatly reducing management costs.
Excellent material and long service life
The main tank body is made of high-quality carbon steel with anti-corrosion treatment (multi-layer epoxy asphalt/fiberglass reinforced plastic anti-corrosion) or reinforced fiberglass reinforced plastic (FRP) material, which has excellent corrosion resistance, pressure resistance and anti-aging performance, and its service life can reach more than 20 years.
Low energy consumption and easy maintenance
Adopt high-efficiency and energy-saving core components such as aeration fans and water pumps.
It is designed with dedicated manholes and inspection ports, facilitating daily inspection, maintenance and sludge cleaning.
Iii. Main Technical Parameters (Customizable according to project requirements)
Project parameters/descriptions
Processing capacity: 1 m³/d to 500 m³/d (or larger, modularly combinable)
Influent water quality (reference) : CODcr ≤ 400mg/L, BOD₅ ≤ 200mg/L, SS ≤ 250mg/L, NH₃-N ≤ 40mg/L, pH 6-9
The effluent standard can reach the first-level A/B standard of GB18918-2002, local standards or reuse standards
Core processes include A/O, A²/O, MBR, SBR, biological contact oxidation, etc
The material of the equipment is carbon steel with anti-corrosion treatment (Q235+ special anti-corrosion) or fiberglass reinforced plastic (FRP)
The control system is automatically controlled by PLC and operated by touch screen. A remote monitoring module can be optionally equipped
Installation methods: fully underground and semi-underground
The power supply requirement is 380V/220V, 50Hz
Iv. Application Fields
New rural construction: Centralized treatment of domestic sewage in rural areas and towns.
Residential communities: Villa areas, residential communities and affordable housing that have not been connected to the municipal pipeline network.
Public services: schools, hospitals, military camps, expressway service areas, parks, tourist attractions.
Commercial facilities: hotels, guesthouses, resorts, farmhouses, food processing plants, and living areas.
Others: Small factory living areas, temporary construction camps, water pollution emergency treatment, etc.
V. Hanlo Service Commitment
Customized design: Based on the on-site water quality, water volume, terrain and discharge requirements of the user, provide the optimal process solution and equipment selection.
Professional construction: We offer a "one-stop" turnkey project service covering civil engineering guidance, equipment installation, commissioning and delivery.
Quality Assurance: The core components of the equipment are made of well-known domestic and foreign brands to ensure long-term stable operation.
After-sales support: Provide detailed operation training, establish equipment files, offer long-term supply of spare parts and technical support, and respond promptly.
Guangdong Hanluo Environmental Protection Technology Co., Ltd. has always been committed to providing customers with high-quality underground sewage treatment solutions that are "affordable to build, easy to use and cost-effective to manage" with professional technology, reliable products and dedicated services, contributing to the construction of green mountains and clear waters.
